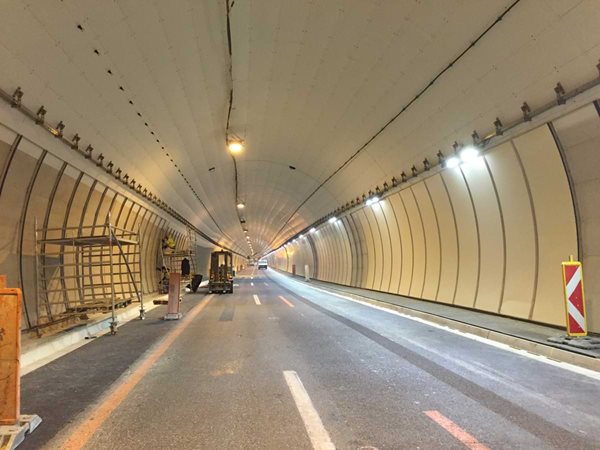

We are often asked what's the difference between fire boards vs sprayed mortar as fire protection systems for tunnels. In this article we would like to compare two popular methods for fire protection in tunnels. As a manufacturer of Aestuver fire boards we believe that there are numeroud benefits of such a solution over a sprayed mortar.
Aestuver fire protection tunnel systems are cement-bonded, glass-fiber-reinforced fire protection boards designed for underground transportation applications, including retrofit and direct installation during concrete pour. The tunnel fire boards are dimensionally stable at external temperatures exposure, chemically resistant, suitable for all tunnel shapes, and capable of meeting demanding tunnel fire curves.
Sprayed mortar fire protection, by contrast, is an in-situ applied coating process. Its performance depends not only on the tested fire design but also on application uniformity, rebound losses, substrate condition, moisture state, ambient temperature, curing, and whether the as-built thickness actually matches the tested thickness everywhere on the lining. The practical result is that sprayed systems are more process-dependent, whereas you don't have to worry so much about it when you use fire boards.
Thickness control is one of the sharpest technical dividing lines between the two approaches. A board system arrives with a factory-controlled thickness, so the installed fire-protection layer is largely defined by board selection and fastening geometry rather than by the operator’s ability to maintain nozzle distance, spray angle, material rheology, and layer build-up in a confined tunnel environment.
Sprayed mortar has the opposite profile. The user-provided project constraints point to rebound of about 5 to 10 percent and difficulty controlling thickness on uneven surfaces; where a 25 mm tested design encounters a 10 mm substrate deviation, the installed depth can effectively grow to 35 mm just to maintain the minimum cover at local low spots. That creates two engineering problems at once: under-thickness risk at the worst points and systematic material overconsumption everywhere else.
This matters because passive fire systems are qualified by test configuration, thickness, fixing method, and substrate assembly. A system that is nominally designed around one thickness but is executed with large local variation becomes harder to verify, harder to inspect, and more expensive to deliver consistently. Aestuver fire board systems reduce that uncertainty because the fire-protection layer is pre-manufactured to a defined section rather than sculpted on the tunnel wall.
Sprayed mortar usually carries hidden material penalties beyond the headline design thickness. Rebound during spraying, overbuild required to compensate for lining irregularity, closure of technological openings, and extra consumption at segment joints all push actual use above theoretical quantities. In segmentally lined tunnels, the gap between nominal geometry and real geometry can therefore become a significant cost driver. What may seem as a lower material cost during the tendering phase may end up as an expensive variation during the construction. Underestimation of mortar consumption is quite common.
Aestuver fire boards are better aligned with discrete tunnel geometry. Because boards bridge over many local openings and tolerances instead of filling them monolithically with sprayed material, they reduce dependence on substrate correction and limit the amount of fire-protection material consumed merely to normalize the surface. The Aestuver system is economically optimized in production and processing and as easy to install on tunnel walls and ceilings. Waste ratio from application of fire boards in tunnels is relatively low. Some projects achieve as low as 2% of waste when installing tunnel fire protection boards and others tend to reach around 5% of waste. Nevertheless, each project is different and waste calculations need to be carried out individually.
Sprayed mortar increases labor intensity because the workface must typically be split into multiple specialized activities: surface cleaning and preparation, possible mesh installation, spraying, quality checks, cleanup, and later correction of defects or thin areas. The bullet points also highlight a realistic site constraint: because spraying generates dust and rebound, other trades often cannot work safely in the same area at the same time.
That restriction has major program implications in long tunnels. It compresses productive work into narrower windows, forces more detailed subcontractor choreography, and often requires additional access platforms or scaffolds just to maintain output. The result is not simply more labor hours inside the fire-protection package; it is also lower whole-site productivity because electrical, ventilation, and fire-protection teams interfere with one another.
Aestuver boards have a more modular installation logic. The provided project notes state that several subcontractors can work simultaneously in the same area when boards are used. What is more the boards are mechanically fixed or directly concreted rather than wet-sprayed in place. In practical terms, that makes boards better suited to dense, multidisciplinary tunnel environments where installation speed depends as much on workface coexistence as on the fire-protection crew itself.
Sprayed mortar is highly condition-dependent. Data sheets from manufacturers often dictate a minimum application temperature above 7°C, plus strong sensitivity to humidity and ambient conditions during hardening, with especially longer drying times in unfavourable conditions . Those constraints create a moving target for planners because tunnel microclimates vary with ventilation regime, groundwater behavior, season, and construction stage.
Board systems are much less dependent on curing climate because the fire-protection material is prefabricated. Aestuver boards achieve Type X classification for weather, frost, and water resistance. That does not eliminate normal installation quality requirements, but it does remove the curing-risk mechanism that often governs sprayed systems.
Sprayed mortar generally requires heavier and more complex site logistics. Pumps, mixers, hoses, spray equipment, water supply, power distribution, ventilation management, cleanup equipment, and sometimes generators must all be coordinated in a confined linear worksite. The longer the tunnel, the more this equipment train amplifies friction in access, power routing, and waste handling.
The supply of water may become major hidden burden: water for spraying, water for cleaning rebound-contaminated areas, water for cleaning the mixing and spraying equipment, and transport of wastewater within the tunnel. Those requirements matter because tunnel logistics are dominated by distance and access restrictions; every additional tanker movement, cable run, hose length, and cleaning cycle compounds cost and operational complexity.
Board systems shift the logistic profile from wet-process support to dry installation support. The key resources become boards, fixings, cutting, lifting, and layout control rather than continuous pumping and wash-down operations. In tunnel delivery terms, that is a meaningful simplification because it cuts dependence on fluid handling, curing windows, and contaminated cleanup.
Sprayed mortar typically produces a rough, dimpled finish unless further finishing such as trowelling is carried out. Experiences from various contractor gave us insights that surface smoothing can itself generate substantial waste, reportedly up to 30 percent, which means the aesthetic correction step can undermine material efficiency.
That surface condition is not merely cosmetic. Rough, porous, non-washable surfaces tend to hold dirt, are harder to maintain mechanically, and are more vulnerable to abrasion from traffic-borne particles and stone impact. It further causes low water resistance, poor abrasion resistance, and difficulty cleaning the finished surface in service.
Aestuver tunnel boards are smooth, water-resistant, humidity-resistant, chemically resistant, abrasion-resistant, and easy to clean with industrial methods. For owners, that changes the maintenance model from “protect and avoid damaging the coating” to “operate and clean the lining as a robust tunnel surface.
In operating tunnels, structural fire-protection systems are exposed not only to heat but also to chronic moisture, leaks, salts, oil contamination, dust, and wheel-splashed chemicals. In one of the projects where we were involved the customer identified a failure pathway in sprayed mortar where small stone impacts create micro-cracks, those cracks admit water and chemicals, and leakage can then drive spalling or wider deterioration.
That mechanism is technically plausible because brittle, surface-bonded mineral layers are vulnerable where cyclic wetting, chemical contamination, and local impact interact. Once leakage paths develop behind the mortar, local repair is difficult; the notes indicate that continuous leakage can make it impossible to stop water ingress without mechanically removing the whole mortar layer in the affected area.
Aestuver boards are better positioned for these conditions because of high abrasion resistance and water, frost, and weather resistance. Furthermore, Aestuver tunnel boards are also resistant to chemicals used in de-icing or usualy found on the roads. The modular format also matters: a damaged board can be removed and replaced locally rather than demolished over a larger sprayed field. Such a replacement is quick and doesn't require complicated tunnel closure procedures.
Repairability is another decisive distinction. Sprayed mortar repairs usually require re-mobilizing much of the original process chain: access equipment, substrate preparation, spraying equipment, protection of adjacent assets, cleanup, and curing time before the area can return to service. In a tunnel, that often means broader closures than the defect itself would otherwise require.
Board systems support a more localized intervention philosophy. The Aestuver tunnel boards can be removed individually and replaced more simply and cost-effectively, which aligns with the panelized nature of the system. For operational tunnels, this is important because maintenance strategy is governed by possession time and disruption cost, not just by the direct price of repair materials.
Sprayed mortar complicates protection of installed tunnel assets such as jet fans, cables, doors, and ancillary hardware because these items must be masked or otherwise protected from overspray and contamination. That adds labor before spraying starts and cleanup risk after spraying ends.
Board installation is inherently more selective. Because it is a dry, piece-based fixing operation rather than a projected wet process, it reduces the chance of contaminating nearby equipment and improves compatibility with concurrent MEP and tunnel systems work. Ventilation, electrical, and fire-protection subcontractors can work at the same time.
The above article presents various reasons why we think that Aestuver tunnel boards are better suited for tunnel fire protection than sprayed mortar. Designers, specifiers and tunnel owners should consider all aspects of the installation process throughout the design life of their tunnel. These consider mainly: - material consumption and estimation - thickness control - co-operation between trades on the job site - management of waste (including contaiminated waste from cleaning spraying equipment) - resistance to harsh tunnel environemnt - ease of maintenance and repair Do you want to learn more about Aestuver structural fire protection solutions for tunnel projects? Contact us for technical and commercial advice.
