Ventilation

Importance of ventilation concepts

When buildings are used, ventilation and thus the exchange of "used" air is becoming increasingly important. This is because the used air in buildings in which people live or work has to be regularly replaced by fresh air.

Whereas in the past the natural exchange of air or window ventilation often led to this exchange, intelligent ventilation concepts are required in the course of energy-efficient building planning and the changed use of buildings. The building envelopes become denser and the individual functional layers in the exterior components are optimised to meet the building physics requirements. Thus, within the framework of ventilation concepts - supported by special ventilation systems - the required air exchange is regulated across all areas of use.


Importance of ventilation concepts


In the event of a fire in residential or non-residential buildings (e.g. commercial buildings, special buildings such as hospitals, nursing homes or schools), ventilation ducts must be fireproof so that no hot gases or smoke can enter other areas instead of the supply or exhaust air. A fire-resistant or non-flammable design prevents the spread and significantly reduces the fire hazards.

Intelligent fire protection with Aestuver®

  • Powerful systems
  • Economic solutions
  • Preventive fire protection
  • High-quality fire protection panels
Systematic fire protection from Aestuver

Systematic fire protection

Holistic fire protection begins with planning and can save lives and protect material assets through expert detail coordination of all parties involved. Aestuver® is one of the leading brands in structural fire protection and, with the Aestuver® Lx fire protection panel, also offers high-performance fire protection for ventilation and smoke extraction ducts, both horizontal and vertical.

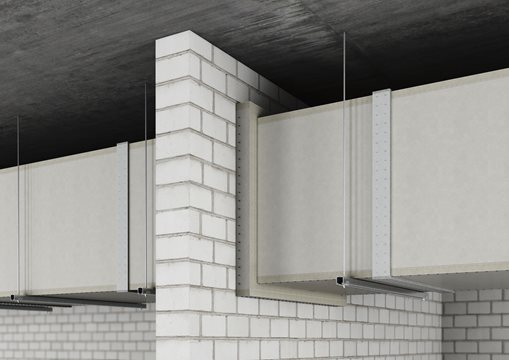

Constructions for ventilation systems with the Aestuver® Lx fire protection panel

Self-contained ventilation systems​

Horizontal

  6 L 310 Lx - four-sided L90​

Wide: 1250 mm
Height: 1000 mm
Max. element length: 2600 mm
Max. suspension distance: 1250 mm
​Max. suspension length: 1500 mm
Operating pressure: ± 500 Pa

Fire protection:
acc. to DIN EN 13501-3: EI 90
P-MPA-E-15-010
i.V.m. GS 21000 6437

Vertical

  6 L 310 Lx - four-sided L90​

Wide: 1250 mm
Height: 1000 mm
Max. element length: 1250 mm
Operating pressure: ± 500 Pa

Fire protection:
acc to. DIN EN 13501-3: EI 90
P-MPA-E-15-010


  6 L 310 Lx - one, two, three-sided

Wide: 600 mm
Height: 600 mm
Max. element length: 2600 mm
Operating pressure: ± 500 Pa

Fire protection:
acc. to DIN EN 13501-3: EI 90
P-MPA-E-15-010
i.V.m. GS 21000 6437



  6 L 310 Lx - quadrilateral L120

Wide: 1250 mm
Height: 1000 mm
Max. element length: 2600 mm
Max. suspension distance: 1250 mm
​Max. suspension length: 1500 mm
Operating pressure: ± 300 Pa

Fire protection:
acc. to DIN EN 13501-3: EI 120
P-MPA-E-15-010
i.V.m. GS 210006437

  6 L 310 Lx - one, two, three-sided

Wide: 600 mm
Height: 600 mm
Max. element length: 1250 mm
Operating pressure: ± 500 Pa

Fire protection:
acc to. DIN EN 13501-3: EI 90
P-MPA-E-15-010




  6 L 310 Lx - quadrilateral L120

Wide: 1250 mm
Height: 1000 mm
Max. element length: 1250 mm
Operating pressure: ± 300 Pa

Fire protection:
acc to. DIN EN 13501-3: EI 120
P-MPA-E-15-010
i.V.m. KB: Nr 210006437

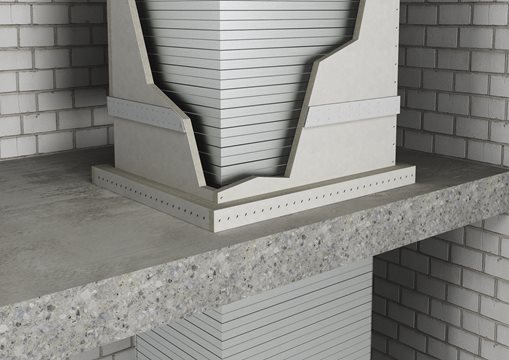

 Sheet metal duct clad ventilation systems

Horizontal

6 L 310 Lx - four-sided L90

Wide: 1250 mm
Height: 1000 mm
Max. element length: 2600 mm
Max. suspension distance: 1250 mm
​Max. suspension length: 1500 mm
Operating pressure: ± 500 Pa

Fire protection:
acc. to DIN EN 13501-3: EI 90
P-MPA-E-16-002
i.V.m. GS 21000 6437.

6 L 310 Lx - one, two, three-sided

Wide: 600 mm
Height: 600 mm
Max. element length: 1250 mm
Operating pressure: ± 500 Pa

Fire protection:
acc to. DIN EN 13501-3: EI 90
P-MPA-E-16-0002
i.V.m. GS 21000 6437

Vertical

6 L 310 Lx - four-sided L90

Wide: 1250 mm
Height: 1000 mm
Max. element length: 1250 mm
Operating pressure: ± 500 Pa

Fire protection:
acc to. DIN EN 13501-3: EI 90
P-MPA-E-16-002




6 L 310 Lx - one, two, three-sided

Wide: 600 mm
Height: 600 mm
Max. element length: 1250 mm
Operating pressure: ± 500 Pa

Fire protection:
acc to. DIN EN 13501-3: EI 90
P-MPA-E-16-002

The Aestuver® Lx fire protection panels convince thanks to the following properties:

  • Guideline-compliant

Tested according to European guidelines for ventilation and smoke extraction ducts.


  • Weather resistance

The lightweight concrete panels are weather, frost and water resistant.


  • Material surface

Very smooth material surface enables use for supply air systems.

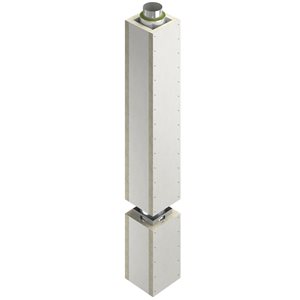

Aestuver® also offers a fire protection solution for monthly flue pipes: 6 L 330 Lx Aestuver® flue pipe

  • Panel thickness: 40 mm
  • Outer dimension: < 1 250 mm x < 1 250 mm
  • Internal dimension: < 1 170 mm x 1 170 mm
  • Shaft weight: < 61 kg/m
  • Application : ventilated annular gap 40 mm or min 30 mm insulation of the inner shell
  • Application : shafts for assembly walls
  • Classification: T400 LA 90
  • Fire protection: Z-7.4-3529

Aestuver® offers its partners and customers individual advice - fair, needs-based and personal. In addition to custom-fit products, we offer comprehensive services - free of charge, of course.

Get in touch with our experts now.

The Aestuver® Lx fire protection boards convince thanks to the following properties:

conform to guidelines

Tested according to European guidelines for ventilation and smoke extraction ducts, the Aestuver® Lx fire protection board far exceeds German requirements.

weather resistance

The cement-bonded lightweight concrete panels are weather-, frost- and water-resistant and therefore also suitable for use in building components that have to meet high climatic requirements.

material surface

Very smooth material surface enables the use for supply air systems.

×
