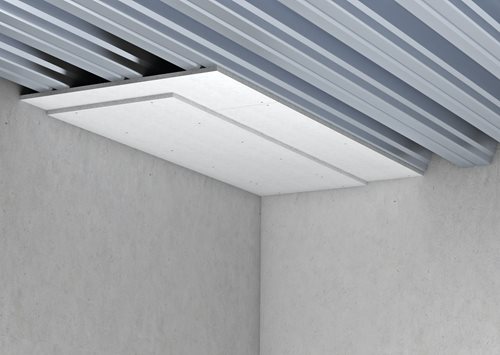

2 ST 21 AE Aestuver trapezoidal steel ceiling F60

Component

  • Fire protection P-SAC-02/III-723: F60-A from below
  • Insulation material 60 mm / 150 kg/m³
  • Classification CR: KB 3.2/14-043-5 REI 60 (a-b)
  • Planking 2 × 15 mm
  • Component weight ≥ 44 kg/m²
  • Construction height ≥ 90 mm


Building material

  • Building material class (EN 13501-1) A1
  • Material (European regulated) ETA-11/0458

Advantages
  • Can be used outdoors without additional coating
  • lightweight individual components
  • can be mounted from below

2 ST 35 AE Aestuver trapezoidal steel ceiling F90

Component

  • Fire protection P-SAC-02/III-723: F90-A from below
  • Insulation material 60 mm / 150 kg/m³
  • Classification CR: KB 3.2/14-043-5 REI 90 (a-b)
  • Planking 2 × 20 mm
  • Component weight ≥ 50 kg/m²
  • Construction height ≥ 100 mm


Building material

  • Building material class (EN 13501-1) A1
  • Material (European regulated) ETA-11/0458

Advantages
  • Can be used outdoors without additional coating
  • lightweight individual components
  • can be mounted from below

2 ST 41 AE Aestuver trapezoidal steel ceiling F120

Component

  • Fire protection: P-SAC-02/III-706 - F120-A from below
  • Insulation material not required
  • Classification CR: KB 3.2/14-043-6 REI 120 (a-b)
  • Planking 2 × 25 mm
  • Component weight ≥ 47 kg/m²
  • Construction height ≥ 50 mm


Building material

  • Building material class (EN 13501-1) A1
  • Material (European regulated) ETA-11/0458

Advantages
  • no insulation protection required
  • can be used outdoors without additional coating
  • lightweight individual components
  • can be mounted from below
×
