Structural fire protection > Independent false ceilings

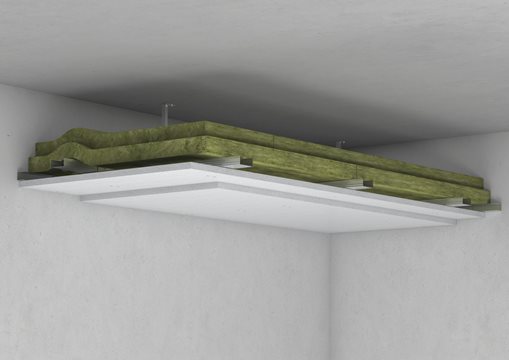

2 S 31 AE Aestuver suspended ceiling F 90 (on its own from above/below)

Data

Component

  • Fire protection P-MPA-E-18-006: F90-A from below / from above
  • Insulation material 2 × 40 mm / 30 kg/m³
  • Classification CR 210007475: EI 90 (a- b)
  • Planking 2 × 20 mm
  • Component weight ≥ 35 kg/m²
  • Construction height ≥ 147 mm
  • Permissible span width 625 mm


Building material

  • Building material class (EN 13501-1) A1
  • Material (European regulated) ETA-11/0458

Advantages

Fire protection
  • from the underside of the ceiling and from the ceiling cavity Planning

Planning
  • Large spans
  • also available with level substructure
  • Installation of lamp boxes possible
  • Installation of inspection openings possible in case of fire exposure from the ceiling cavity

Application
  • Can be used outdoors without additional coating

2 S 32 AE Aestuver suspended ceiling F90 (acting on its own)



Data

Component:

  • Fire protection P-2100/925/15
  • Planking 2 x 25 mm
  • Component weight ≥ 40 kg/m²
  • Construction height ≥ 105 mm
  • Permissible span width 625 mm


Building material

  • Building material class (EN 13501-1) A1
  • Material (European regulated) ETA-11/0458

Advantages

  • Any suspension height
  • Can be used outdoors without additional coating
  • Installation of access panels possible
  • concrete-like, very smooth surface

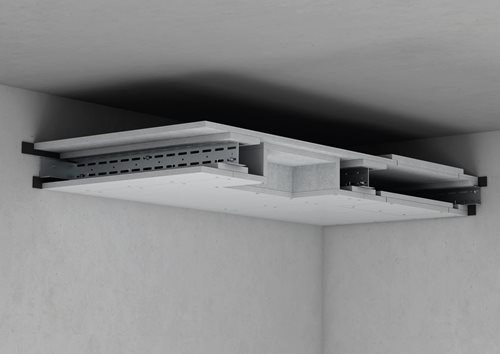

2 S 33 AE Aestuver wide span ceiling F90 (acting on its own)

Data

Component:

  • Fire protection P-SAC 02/III-515
  • Planking 25 mm per side
  • Component weight ≥ 58 kg/m²
  • Construction height ≥ 165 mm
  • Permissible span width 625 mm


Building material

  • Building material class (EN 13501-1) A1
  • Material (European regulated) ETA-11/0458


Advantages

  • Large span possible
  • Can be used outdoors without additional coating
  • Installation of access panels possible
  • Installation of lamp boxes possible
  • Concrete-like, very smooth surface
×
