Structural fire protection > Assembly and steel framework walls

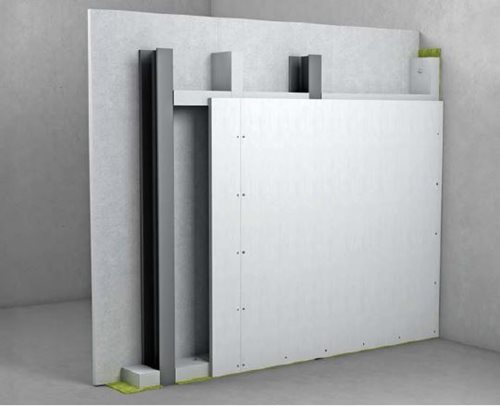

1 S 23 AE Aestuver steel frame wall F60

Component:

  • Fire protection P-3249/1399: F 60
  • Insulation material not required
  • Wall weight ≥ 39 kg/m²
  • Wall thickness 140 mm
  • Wall height up to 5 490 mm


Building material

  • Building material class (EN 13501-1) A1
  • Material (European regulated) ETA-11/0458



Advantages

  • can be used for high rooms (wall heights up to 5.49 m)
  • high stability
  • mechanically loadable
  • can be used outdoors without additional coating

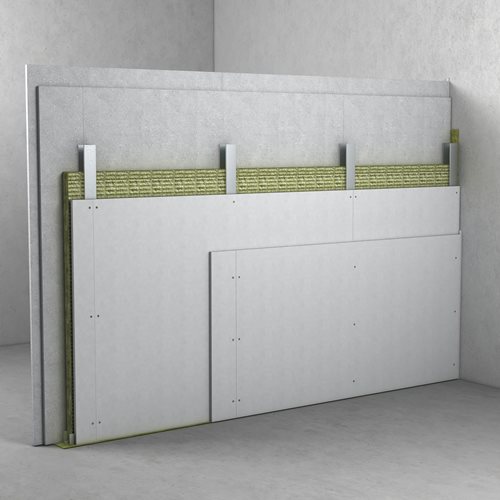

1 S 41 AE Aestuver mounting wall F120

Component:

  • Fire protection P-2101/076/16: F 120
  • Insulation material 40 mm / 30 kg/m³
  • Classification CR: K-2100/868/15: EI 120
  • Sound insulation Rw ≥ 57 dB
  • Wall weight ≥ 50 kg/m²
  • Wall thickness 110 mm
  • Wall height up to 4 000 mm


Building material

  • Building material class (EN 13501-1) A1
  • Material (European regulated) ETA-11/0458



Advantages

  • Fire protection: very slim efficient construction
  • Planning: room-high panels, very smooth surface similar to concrete
  • Moisture: can be used outdoors without additional coating



1 S 43 AE Aestuver steel frame wall F120

Component:

  • Fire protection P-3249/1399: F 120-A
  • Insulation material not required
  • Wall weight ≥ 45 kg/m²
  • Wall thickness 150 mm
  • Wall height up to 5 490 mm

Building material
  • Building material class (EN 13501-1) A1
  • Material (European regulated) ETA-11/0458



Advantages
  • load-bearing and non-load-bearing
  • can be used for high rooms (wall heights up to 5.49 m)
  • high stability
  • mechanically loadable
  • can be used outdoors without additional coating


×
